Product Details

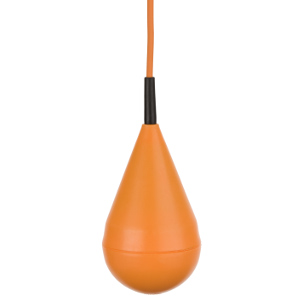

The NIVA level controller MS 1 is the ideal solution to control liquid levels with limited switching space, e. g. in:
Pump stations
Wells
Pump chambers
The NIVA level controller MS 1 is engineered especially for use in sewage works and pumping stations in liquids heavily charged with solid matter such as raw sewage etc. Thanks to the good chemical and thermal properties our level controllers are resistant to lees, uric acid, fecal sewage water, oils, petrol, diesel oil, emulsions, alcohol, fruit acids, and even many chemicals. For use at temperatures up to 80 °C (176 °F).
Applications
For use in municipal, industrial, commercial and domestic applications.
Available Versions
| Type | Cable | Cable length | Order Number |
|---|---|---|---|
| SPDT | TPK/PVC 3 x 0,75 | 5 | 40 000105 |
| SPDT | TPK/PVC 3 x 0,75 | 10 | 40 000110 |
| SPDT | TPK/PVC 3 x 0,75 | 20 | 40 000120 |
| SPDT | TPK/PVC 3 x 0,75 | 30 | 40 000130 |
Electronic Connection
| Connection of level controller |
Wire | ||||
|---|---|---|---|---|---|
| grey | Black | brown | |||
| Connection of level controller |
insulate | X | X | ||
| For filling a tank normally closed |
X | insulate | X | ||
| Alarm high level | insulate | X | X | ||
| Alarm low level | X | insulate | X | ||
Technical Data
| Specific weight: | 0,95 – 1,05 or according to specification |
| Max. temperature: | 80°C |
| Breaking capacity: | 1mA / 4V – 5A / 250V* |
| Switch point: | 10° |
| Protective system: | IP 68 / 7 bar |
| Equipment group: | || |
| Cable cross section: | 3×0.75 mm2 |
| Height / diameter: | 180 / 100 mm |
| Housing quality: | Polypropylen (PP) |
| Housing Colour: | Orange |
| Cable quality: | TPK/PVC |
| Cable colour: | Orange |
